Innovative Ball Mill Bearings for Enhanced Performance OD1300mm/OD1600mm/OD1800mm

Short Description:

2.4M Feed NNU1000Y ID:1000mmOD1300mmW:280mm

2.4M Feed NNUP1000YID:1000mmOD1300mmW:300mm

2.6M Feed NNU1200YID:1200mmOD1600mmW:280mm

2.6M Feed NNUP1200YID:1200mmOD1600mmW:300mm

3.2M Feed NNU1400HYID:1400mmOD1800mmW:280mm

3.2M Feed NNUP1400HYID:1400mmOD1800mmW:310mm


Product Detail

Product Tags


As a leading manufacturer of bearings, we are proud to introduce our traditional spherical roller bearings and new type ball mill bearings and Our bearings are designed with precision and durability, ensuring long-lasting, reliable operation in a variety of applications.

Traditional Spherical Roller Bearing

Our traditional spherical roller bearing are engineered to withstand heavy radial and axial loads, making them ideal for high-speed and heavy-duty applications. These bearings feature a high-precision design, ensuring optimal performance and longevity even under the most challenging conditions.

Some key features of our traditional spherical roller bearings include:

- High load-carrying capacity

- Precision engineering for smooth operation

- Reduced friction and wear

- Easy installation and maintenance

Our bearings are available in a range of sizes and configurations to meet the specific needs of your application.

New Type Ball Mill Bearings

Our new type ball mill bearings are specifically designed for use in ball mills and other high-speed applications. These bearings feature a unique design that significantly reduces friction and wear, improving overall performance and efficiency.

Some key features of our new type ball mill bearings include:

- Reduced friction and wear

- Increased longevity and reliability

- High load-carrying capacity

- Easy installation and maintenance

Our ball mill bearings are manufactured to exacting standards, ensuring precision and consistency in every product.


Whether you need traditional spherical roller bearings or new type ball mill bearings, we have the expertise and experience to deliver high-quality products that meet your needs. Contact us today to learn more about our bearings and how they can benefit your business.

Advantages of new bearings compared to traditional self-aligning rollers:


 Spherical Double Row Roller Bearings

Spherical Roller Bearing


1.The barrel of the mill must have a certain inclination, and the outer ring with a radian is designed to adjust the inclination and misalignment of the mill.2. Thermal expansion and contraction occur during mill production, and the inner ring is designed without ribs, which solves the problem of thermal expansion and contraction encountered in the production process of the mill due to high material temperature and regional temperature differences.3.The mill is fixed: the discharge end is designed with double gears, which satisfies the positioning function of the mill barrel and makes the operation more stable. The feed end adopts a design without ribs, which meets the telescopic function of the mill cylinder, and the running resistance is smaller.4. Mill bearing lubrication: The outer ring of the bearing is designed with 3 positioning holes, and each hole has an oiling thread. It is more convenient for users to lubricate the problem. 1. The centering of the inclination of the mill is completed by the self-aligning of the arc-shaped raceway of the self-aligning roller bearing.2.It does not have telescopic function, and is suitable for constant temperature environment and non-temperature materials.3. The inner ring of the self-aligning roller bearing used at both the inlet and outlet ends of the mill has double gear sides, both of which have the positioning function. There is no axial sliding function.4. The self-aligning roller has three oil holes

Load Capacity

The mill is subject to high radial load: we use two rows of linear raceway design, with more contact surfaces to carry high load and reduce impact load, so as to achieve the bearing weight and impact load required by the mill. The spherical roller bearing raceway is an arc-shaped contact surface with a small contact area. Large mills have limited weight load capacity.

Life Span

The service life can generally reach 10-12 years. The general service life of spherical roller bearings is 3-5 years

Energy saving

The double raceway design has smaller running resistance and significantly lower starting resistance, which can save electric energy; it is convenient for maintenance and saves a lot of water resources. The energy-saving effect of the curved raceway contact surface is not obvious

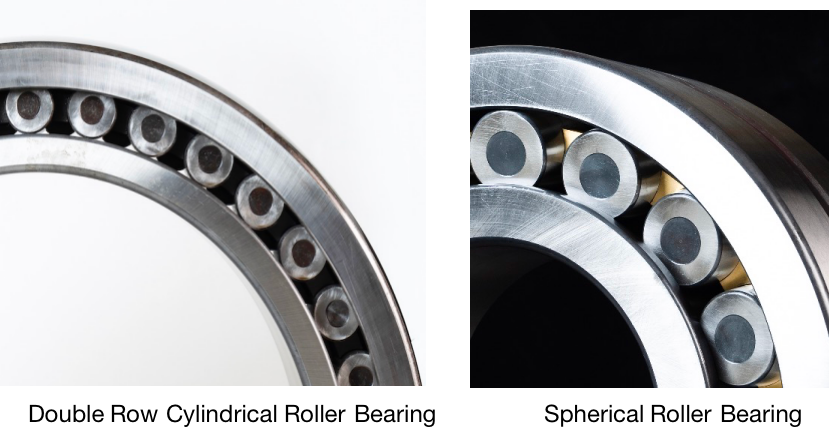

Comparison of retaining ring images

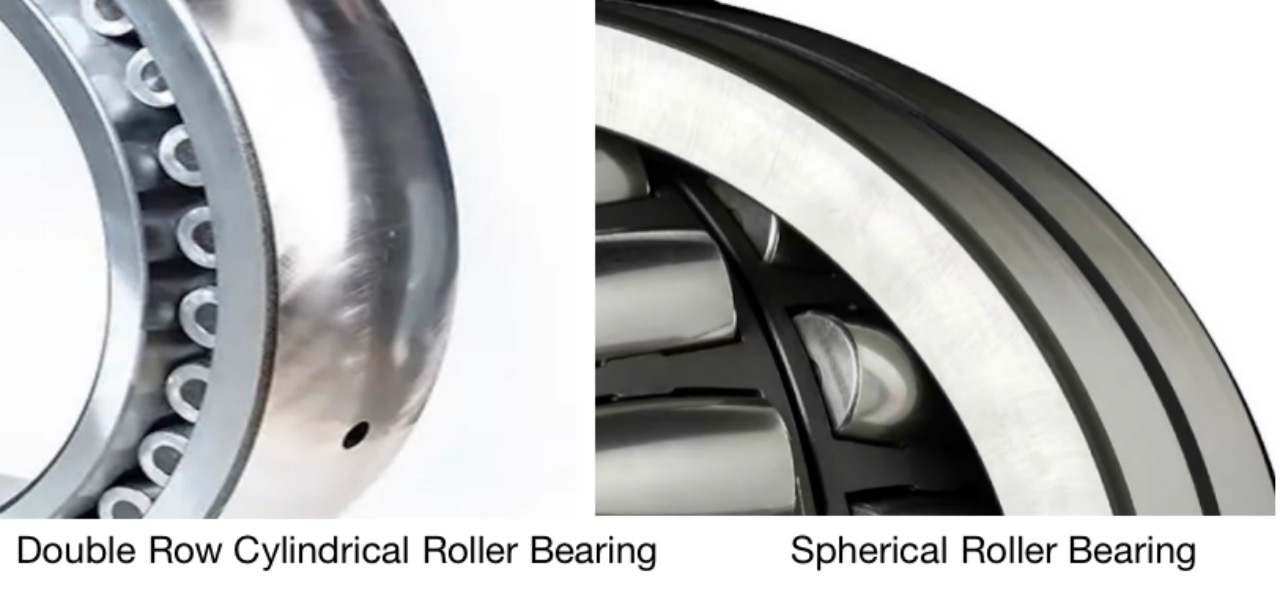

Comparison of outer circle radian images

ball mill bearing China

Different outer ring curvature shapes: The outer ring curvature of the new generation ball mill bearings presents a hemispherical shape, while the outer ring curvature of traditional spherical roller bearings is cylindrical.

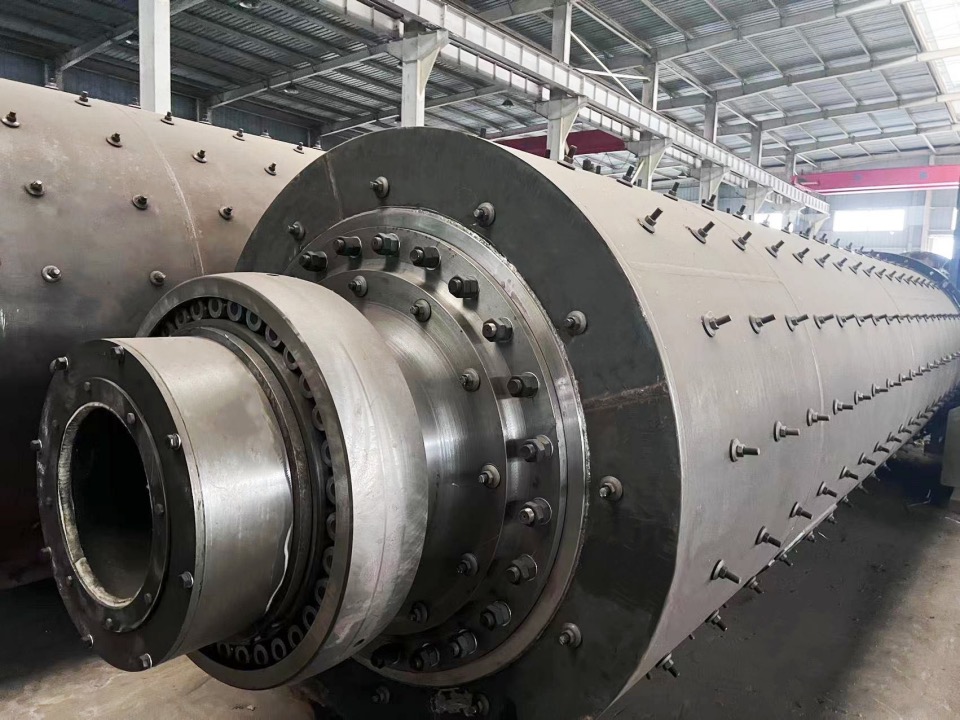

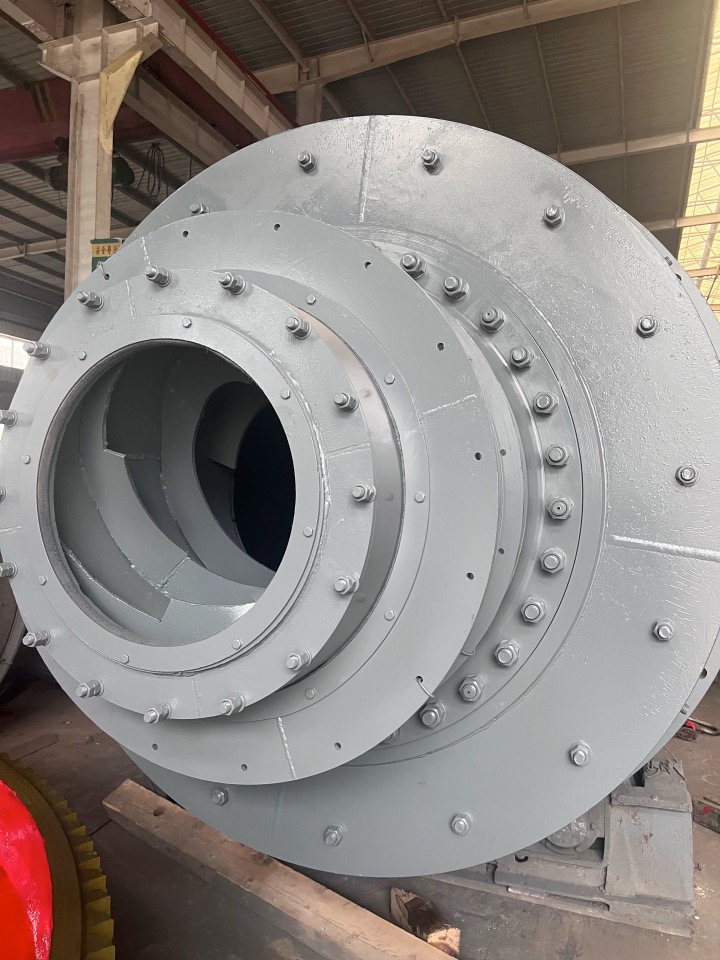

Application of Ball Mill Bearing

Ball millball mill bearing in China
