Type EXL Pillow Block Bearing P4B-EXL-211R P4B-EXL-212R P4B-EXL-215R
| Shaft size | Non-expansion part number |
Description (Non-expansion) | Expansion part number |

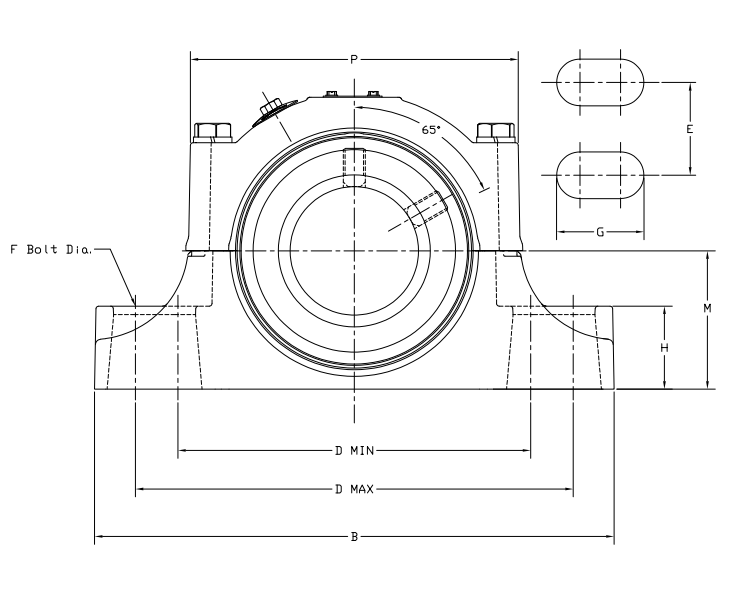

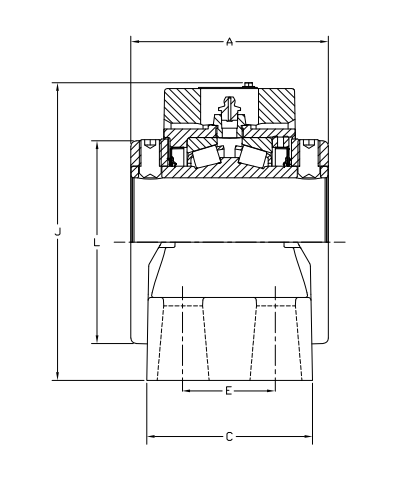

Description (Expansion) | A | B | C | D Min. | D Max. | E | F bolt dia. | G | H | J | L | M | P | EXP* | Approx. weight (lb) |
| 2-1/4 | 077267 | P4B-EXL-204R | 077284 | P4B-EXL-204R | 4 | 10.38 | 3.5 | 7.75 | 8.25 | 1.88 | 5/8 | 1.25 | 1.63 | 6.08 | 4.06 | 2.75 | 6.41 | 0.56 | 29 |
| 2-7/16 | 077268 | P4B-EXL-207R | 077285 | P4B-EXL-207R | 4 | 10.38 | 3.5 | 7.75 | 8.25 | 1.88 | 5/8 | 1.25 | 1.63 | 6.08 | 4.06 | 2.75 | 6.41 | 0.56 | 29 |
| 2-1/2 | 077269 | P4B-EXL-208R | 077286 | P4B-EXL-208R | 4 | 10.38 | 3.5 | 7.75 | 8.25 | 1.88 | 5/8 | 1.25 | 1.63 | 6.08 | 4.06 | 2.75 | 6.41 | 0.56 | 29 |
| 2-11/16 | 077270 | P4B-EXL-211R | 077287 | P4B-EXL-211R | 4.5 | 11.75 | 3.75 | 8.75 | 10 | 2.12 | 5/8 | 1.38 | 1.88 | 6.77 | 4.72 | 3.13 | 7.5 | 0.56 | 42 |
| 2-3/4 | 077271 | P4B-EXL-212R | 077288 | P4B-EXL-212R | 4.5 | 11.75 | 3.75 | 8.75 | 10 | 2.12 | 5/8 | 1.38 | 1.88 | 6.77 | 4.72 | 3.13 | 7.5 | 0.56 | 42 |
| 2-15/16 | 077272 | P4B-EXL-215R | 077289 | P4B-EXL-215R | 4.5 | 11.75 | 3.75 | 8.75 | 10 | 2.12 | 5/8 | 1.38 | 1.88 | 6.77 | 4.72 | 3.13 | 7.5 | 0.56 | 42 |
| 3 | 077273 | P4B-EXL-300R | 077290 | P4B-EXL-300R | 4.5 | 11.75 | 3.75 | 8.75 | 10 | 2.12 | 5/8 | 1.38 | 1.88 | 6.77 | 4.72 | 3.13 | 7.5 | 0.56 | 42 |
| 3-3/16 | 077274 | P4B-EXL-303R | 077291 | P4B-EXL-303R | 5 | 13.75 | 4.5 | 10.56 | 11.75 | 2.38 | 3/4 | 1.48 | 2.25 | 7.97 | 5.5 | 3.75 | 9.31 | 0.56 | 73 |
| 3-1/4 | 077275 | P4B-EXL-304R | 077292 | P4B-EXL-304R | 5 | 13.75 | 4.5 | 10.56 | 11.75 | 2.38 | 3/4 | 1.48 | 2.25 | 7.97 | 5.5 | 3.75 | 9.31 | 0.56 | 73 |
| 3-7/16 | 077276 | P4B-EXL-307R | 077293 | P4B-EXL-307R | 5 | 13.75 | 4.5 | 10.56 | 11.75 | 2.38 | 3/4 | 1.48 | 2.25 | 7.97 | 5.5 | 3.75 | 9.31 | 0.56 | 73 |
| 3-1/2 | 077277 | P4B-EXL-308R | 077294 | P4B-EXL-308R | 5 | 13.75 | 4.5 | 10.56 | 11.75 | 2.38 | 3/4 | 1.48 | 2.25 | 7.97 | 5.5 | 3.75 | 9.31 | 0.56 | 73 |
| 3-15/16 | 077278 | P4B-EXL-315R | 077295 | P4B-EXL-315R | 6.25 | 15.25 | 4.74 | 11 | 13 | 2.25 | 3/4 | 1.88 | 2.44 | 8.81 | 6 | 4.25 | 10.08 | 0.56 | 109 |
| 4 | 077279 | P4B-EXL-400R | 077296 | P4B-EXL-400R | 6.25 | 15.25 | 4.74 | 11 | 13 | 2.25 | 3/4 | 1.88 | 2.44 | 8.81 | 6 | 4.25 | 10.08 | 0.56 | 109 |
| 4-7/16 | 077280 | P4B-EXL-407R | 077297 | P4B-EXL-407R | 6.75 | 16.5 | 5.08 | 12 | 13.88 | 2.5 | 3/4 | 1.82 | 2.75 | 9.79 | 6.45 | 4.75 | 11.08 | 0.56 | 154 |
| 4-1/2 | 077281 | P4B-EXL-408R | 077298 | P4B-EXL-408R | 6.75 | 16.5 | 5.08 | 12 | 13.88 | 2.5 | 3/4 | 1.82 | 2.75 | 9.79 | 6.45 | 4.75 | 11.08 | 0.56 | 154 |
| 4-15/16 | 077282 | P4B-EXL-415R | 077299 | P4B-EXL-415R | 7.25 | 18.5 | 5.66 | 13.5 | 15.88 | 2.88 | 7/8 | 2.23 | 3 | 11.36 | 7.25 | 5.5 | 12.71 | 0.56 | 192 |
| 5 | 077283 | P4B-EXL-500R | 077300 | P4B-EXL-500R | 7.25 | 18.5 | 5.66 | 13.5 | 15.88 | 2.88 | 7/8 | 2.23 | 3 | 11.36 | 7.25 | 5.5 | 12.71 | 0.56 | 192 |
